Compared with the large mill equipment, the small mill is small in size, small in floor space, easy to move, and moderate in output, and is widely loved by users in the market. So what is the price of the mill in the market? Generally between 100,000-150,000.
Mill Market Quotation Table
working principle

Compared with the large mill equipment, the small mill is small in size, small in floor space, easy to move, and moderate in output, and is widely loved by users in the market. So what is the price of the mill in the market? Generally between 100,000-150,000.

Note: 1. The above is an example of limestone processing. Due to the different materials and output in different places, the above data are for reference only. 2. The pulse dust collector is not a standard configuration, but can be selected according to environmental protection requirements.

working principle

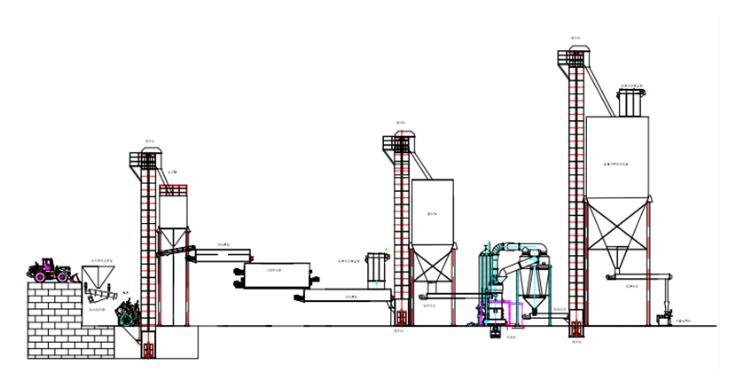

The material to be ground is crushed by the crusher and sent to the storage hopper by the elevator, and the speed-adjustable feeder is transported from the hopper to the main machine cavity through the material inlet of the cover cylinder. Driven by the transmission device, the central shaft drives the plum blossom frame assembly, the grinding roller assembly, the blade holder, and the blade seat assembly to rotate together. The grinding roller assembly is installed on the plum blossom frame, and the rotation generates huge centrifugal force to make the grinding The roller and the grinding ring are closely attached together, and the material is continuously shoveled to the grinding ring and the grinding roller under the action of the shovel seat assembly. Rolling, extrusion, impact. The material is crushed and refined. The pulverized powder rises to the classification area driven by the airflow, and the gas and powder are separated by the turbo classifier, and the qualified powder separated by the turbo classifier is sent to the double cyclone for collection through the pipeline. The unqualified powder is returned to the main machine and crushed again until it is qualified.
